2mp gare gamoyenebis
IPC-HFW1431S-S4_thumb
Click to enlarge
2mp gare gamoyenebis
IPC-HFW1431S-S4_thumb

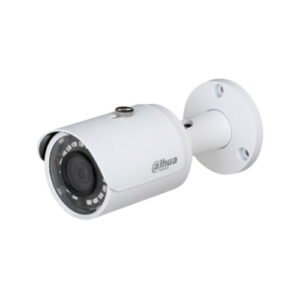

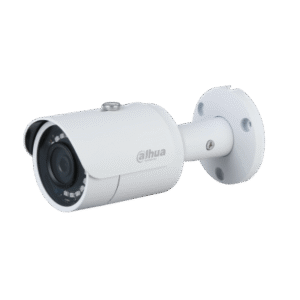

4MP Bullet DH-IPC-HFW1431SP

265.00₾

Entry 4 Megapixel Bullet Camera

  • 1/3” 4Megapixel progressive CMOS
  •  H.265 & H.264 dual-stream encoding
  • 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens (3.6 mm optional)
ბრენდი

Dahua

კამერის ტიპი
ეფექტური პიქსელები
ღამის ხედვის მანძილი

30 მეტრი

გამოსახულების რეზოლუცია
ლინზის ზომა

2.8 mm

ლინზის ტიპი

სტატიკური

SKU: DH-IPC-HFW1431SP Categories: ,
Description

Description

Camera

Image Sensor1/3” 4Megapixel progresive CMOS
Effective Pixels2688(H)x1520(V)
RAM/ROM512MB/32MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/100000s
Minimum Illumination0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N RatioMore than 50dB
IR DistanceDistance up to 30m(98ft)
IR On/Off ControlAuto/ Manual
IR LEDs18
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:104°/87°, V:57°/48°
Focus ControlFixed
Close Focus DistanceN/A
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm63m(207ft)25m(82ft)13m(43ft)6m(20ft)
3.6 mm80m(262ft)32m(105ft)16m(52ft)8m(26ft)
PTZ
Pan/Tilt RangePan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event TriggerMotion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly
IVSTripwire, Intrusion

Video

CompressionH.265/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability2 Streams
Resolution4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame RateMain Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265: 12K ~ 8448Kbps

H.264: 32K ~ 10240Kbps

Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization (EIS)N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A

Network

EthernetRJ-45 (10/100Base-T)
ProtocolHTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge StorageNAS

Local PC for instant recording

Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE(IEEE 802.3af)(Class 0)
Power Consumption< 5.5W
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Stroage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceN/A
Construction
CasingMetal+Plastic
DimensionsΦ70mm×164.7mm(2.76”x6.49”)
Net Weight0.38Kg(0.84lb)
Gross Weight0.44Kg(0.97lb)
სპეციფიკაცია

DESCRIPTION

Camera
Image Sensor1/3” 4Megapixel progresive CMOS
Effective Pixels2688(H)x1520(V)
RAM/ROM512MB/32MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/100000s
Minimum Illumination0.08Lux/F2.0( Color,1/3s,30IRE)0.3Lux/F2.0( Color,1/30s,30IRE)0Lux/F2.0(IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 30m(98ft)
IR On/Off ControlAuto/ Manual
IR LEDs18
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:104°/87°, V:57°/48°
Focus ControlFixed
Close Focus DistanceN/A
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm63m(207ft)25m(82ft)13m(43ft)6m(20ft)
3.6 mm80m(262ft)32m(105ft)16m(52ft)8m(26ft)
PTZ
Pan/Tilt RangePan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event TriggerMotion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly
IVSTripwire, Intrusion
Video
CompressionH.265/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability2 Streams
Resolution4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame RateMain Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
