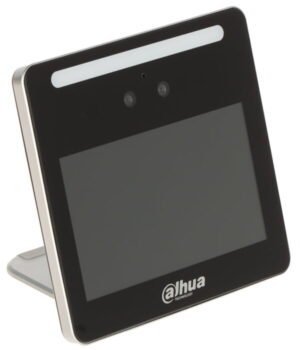

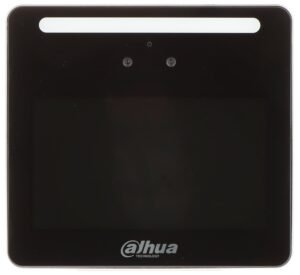

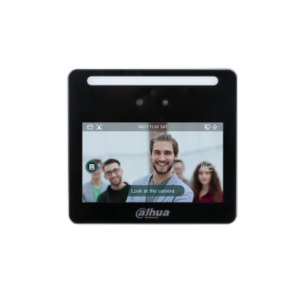

სახის ამომცნობი დაშვების აღრიცხვის კონტროლერი

System

Main Processor

Embedded processor

Internet Protocol

IPv4; RTSP; RTP; TCP; UDP; P2P

OSDP Protocol

Support

Interoperability

CGI

SDK

Support

Basic

Display Screen

4.3-inch TFT screen

Screen Type

Capacitive screen

Resolution

480 × 272

Camera

2MP CMOS high definition camera

Voice Prompt

Yes

Casing

PC+ABS

Function

Card Type

IC card

Network Update

Yes

Peripheral Card Reader

1 RS-485

Real-Time Surveillance

Yes

Multiple Authentication

Yes

Take Face Images after Swiping Cards

Yes

Auto-Registration

Yes

Attendance

Attendance Record Export

USB flash drive export

Attendance Mode

Fixed attendance; free attendance

Attendance Statistics

Statistics by personnel, month, anomaly

Department Setting

20 departments

Shift Setting

24 shifts

Capacity

User Capacity

1,500

Face Capacity

1,500

Card Capacity

1,500

Password Capacity

1,500

Record Capacity

150,000

Port

RS-485

1

USB

1 USB2.0 port

Network

1 RJ-45, 10 Mbps/100 Mbps self-adaption

Alarm Input

1

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Tamper

Yes

General

Power Adapter

Included

Power Supply Mode

DC 12V 1.5A

Power Consumption

≤ 18W

Product Dimensions

116 mm × 107 mm × 22 mm (4.57″ × 4.21″ × 0.87″) (H×W×D)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

5%RH–95%RH (non-condensing)

Operating Environment

Indoor

Installation Method

Surface mount; desktop mount

Certification

CE/FCC
