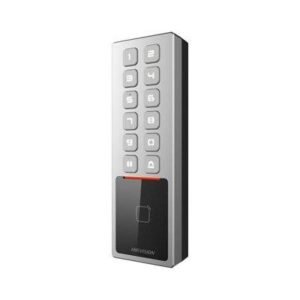

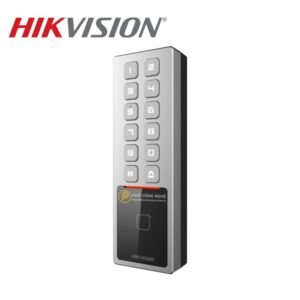

Access control terminal K1T805MX

• Operating system:  Linux
• Audio:  Audio output  1 Built-in buzzer
• Network:   wired network  10/100 Mbps self-adaptive

• Interface:   RS-485  1, supports OSDP
• Network interface: 1
• Wiegand:   Wiegand 26/34
• Lock control: 1
• Exit button: 1
• Door relay output” 1
• Alarm input: 2
• Alarm output: 1
• Tamper: 1

• Capacity
• Card capacity  is 10,000
• The capacity of the event  is 100,000

• authentication
• Card type  M1 card
• Card reading distance  from 0 to 4 cm
• Duration of card reading  ＜ 1 s

• general
• Power supply unit  12 VDC/1 a
• Operating temperature  -30 °C to 60 °C (-22 °F to 140 °F)
• Operating humidity  from 0% to 90% (non-condensing)
• Dimensions  57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″)
• Power consumption  ≤ 12 W
• Language:  English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian and Russian

function

• Hik-Connect  support
• Configuration via web browser,  support PC web configuration and mobile web operation
