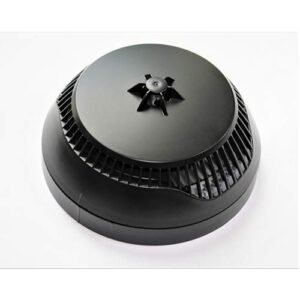

Addressable Smoke Detector (Black)
114,00 ₾
SensoIRIS S130
SensoIRIS S130 is аn addressable optical-smoke detector designed for installation in addressable fire alarm systems supporting TTE communication protocol. The detector is powered on from the panel and can be controlled via the communication protocol.
The detector SensoIRIS S130 is compatible with fire base B124.
SensoIRIS S130 comes with lifetime warranty!
| ბრენდი |
Teletek |
|---|
Description
Description
- Sensitivity level selectable from the control panel – High/Normal/Middle/Low
- Day/Night mode
- Low profile design
- Led indication with 360° visibility
- EN54-7 Certified
- Version with built in isolator – SensoIRIS S130 IS
| Operating Voltage Range | 15 – 32VDC (Nom. 27VDC) |
| Consumption in quiescent state | < 160μA@27VDC |
| Consumption in alarm state, with communication | 6.5mA |
| Output in alarm state at terminal RI (terminals 4/ 1) | 7.5 mA (max)/ 7.5V |
| Wire Gauge for terminals | 0.4mm² – 2.0mm² |
| Operating temperature | -10°C to +60°C |
| Protection | IP30 |
| Weight (including base) | ~125g |
| Dimensions (including base) | 103x42mm |
