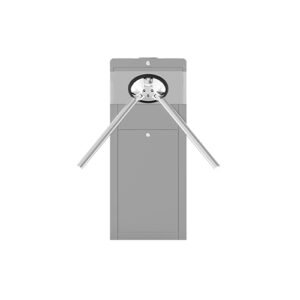

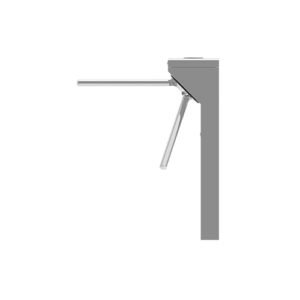

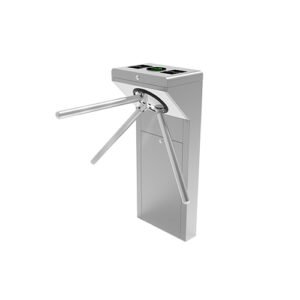

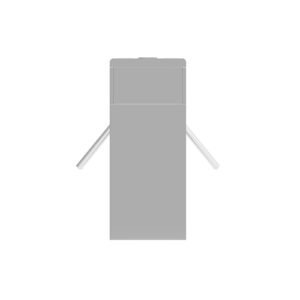

⚙️ Technical Specifications – TS1000 Plus Series
| Category | Specification |
|---|---|
| Drive Mechanism | Semi-automatic |
| Passage Width | 500 mm |
| Flow Rate | RFID: up to 25 persons/min Fingerprint: up to 20 persons/min |
| Lane Type | Single lane |
| Barrier Type | Rotating arm |
| Barrier Width | 500 mm |
| Barrier Movement | Rotating |
| Visual Indicator | Green (steady) – Access granted Red (steady) – Access denied/barrier closed |
| Audio Indicator | Internal buzzer |
| Authentication Methods | RFID / Fingerprint / QR / Remote (wired & wireless) |
| Credential Options | RFID: ProID Series, KR Series Fingerprint: FR1200 / FR1500S |
| Access Controllers | Recommended: C3-200 Pro Plus & InBio260 Pro Plus Optional: Based on size compatibility |
| Mainboard Functions | Barrier open time, access mode selection |
| Communication Interface | RS485, Fire alarm input (voltage-free relay contact) |
| Compatible Software | ZKBio CVAccess / ZKBio CVSecurity (depends on controller) |
| Security Features | Anti-tailgating, emergency drop-arm on power-off |
| Emergency Mode | Supported (automatic arm drop) |
| Power Supply | AC 110V / 220V @ 50–60Hz, DC 12V |
| Power Consumption | Standby: 10VA Active: 40VA |
| Noise Level | < 65 dB |
| MTTR (Maintenance Time) | < 60 minutes |
| MCBF (Mean Cycles Between Failure) | 2 million |
| Ingress Protection | IPX4 |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | 0% – 85% RH (non-condensing) |
| Top Cover Material | SUS304 stainless steel |
| Chassis Material | SUS304 stainless steel (T = 1.2 mm) |
| Chassis Color | Silver-gray |
| Barrier Material | SUS304 stainless steel |
| Installation | Delivered press-assembled |
| Application Environment | Indoor / Outdoor (sheltered only) |
| Site Requirements | Flat, level surface (base plate optional for unfinished floors) |
| Product Dimensions (L×W×H) | 780 × 750 × 1000 mm |
| Shipping Dimensions | 380 × 520 × 1100 mm |
| Footprint | 100 × 420 mm |
| Weight | Net: 20 kg Gross: 25 kg |
| Security Level | Medium |
| Certifications | CE, FCC, UKCA, ISO 9001 |
